Geometric and ergonomic characteristics of the uniportal video-assisted thoracoscopic surgery (VATS) approach

Introduction

During the last three decades, video-assisted thoracoscopic surgery (VATS) has revolutionized the surgical approach to a number of thoracic pathologies (1). Compared to thoracotomy, VATS has demonstrated not only a significant reduction in pain, recovery time and complications but also an improvement in the post-operative quality of life for patients (2). Hence, VATS should be considered the conventional approach for almost all common thoracic operations (3). In the early 2000s, G.R. described the technique for uniportal VATS wedge pulmonary resection (4). Since this first report, progressive refinements of this technique were developed and applied to a broader range of surgical indications including major anatomic pulmonary resections for primary lung malignancy (5). Some papers have already demonstrated the advantage of uniportal VATS in comparison to the traditional three-port techniques in the reduction of postoperative pain, length of hospital stay and time of return to daily activities (6). Uniportal VATS involves the introduction of instruments parallel to a thoracoscope through one small incision wide as a surgeon’s fingerbreadth without further dissection of the intercostal space. An enhanced hand-eye coordination to visualize and operate the thoracoscope and instruments is required. In particular, the thoracoscope is handled in order to visualize the position of the instruments at any time during the procedure with simple zooming in and out of the operative field (5). In this paper, we review the geometric and ergonomic characteristics of the uniportal VATS approach.

Geometric characteristics of uniportal VATS

The geometric configuration of the uniportal VATS approach is completely different to the standard three-port VATS settings. The use of a single port favors a translational approach of VATS instruments along a sagittal plane. The single port setting enables the instruments to move in the direction of two parallel lines approaching the target lesion from a cranio-caudal perspective. This allows the operative fulcrum to be brought inside the chest in a fashion similar to open surgery (1). The three-port VATS lobectomy approach typically uses small ports without rib spread. The strategy for port placement was described in the literature as a baseball diamond and resembles a trapezoid shape (Figure 1) (3). The surgeon’s eyes (the thoracoscope) are at point A; the target lesion lies in front of the surgeon’s eyes at point B; the other two ports are placed at points C and D to allow the left and right hand instruments to be placed and triangulated forwards towards the target at point B along the two vectorial planes and . The viewing axis (vector ) is perpendicular to the operation port axis CD and follows the natural longitudinal axis of the patient from the feet towards the head. Nevertheless, this setting fails to reproduce the real-life arrangement where the surgeons and assistants are situated around the operating table. In real settings, many surgeons stand anterior to the patient in the lateral decubitus position. Consequently, the real axis of the operation is translated posteriorly (Figure 2). The posterior port (D) is translated along the viewing axis and the surgeon is too far to comfortably handle the instrumentation from their position. In addition, if the assistant stands on the opposite side of the operating table, the visual axis would be completely different. In order to cope with these technical and ergonomic challenges, the three-port VATS port placement strategy has been modified, as proposed by Henrik Hansen and coworkers, with the translation of the trapezoid (Figure 3) (7). The camera port (A) has been brought more anterior to the anterior axillary line (A') and the posterior port (D) has been placed more caudally (D'). The utility port position (C) remains unchanged. Although the trapezoid has been preserved, the axis A'B is more comfortable for the operating surgeon. The assistant stands on the same side of the operating table thus improving coordination. After further experience with the three-port VATS approach, it was realized that the posterior 3 mm (D') port was not always essential, resulting in a two-port VATS technique (Figure 4) (8). The three-port approach, whereby the trapezoid configuration allows maximal convergence of operative instruments from each side of the target lesion, results in interference with the optical source (3). The uniportal approach requires translation of the thoracoscope and instruments 90° along a sagittal plane passing from point C, allowing the operative instruments to target the lesion from a vertical and caudo-cranial perspective (Figure 5). To avoid mutual interference, the use of articulating instruments is of paramount importance for their ability to rotate the stem and jaws independently on different planes and with multiple angles. In fact, the approach to the target lesion in the lung is substantially similar to the approach that the surgeon would use in open surgery (9). In the uniportal VATS approach, the target lesion is located in a projective plane with homogeneous coordinates. It is elevated with forceps perpendicularly from the parenchymal profile and resected by applying a stapler (or a curved clamp and overseen) at the base of this newly formed, cone-shaped parenchymal area (10). The approach for a target lung lesion is then similar to a coaxial approach: surgeons work with their eyes and hands in the same plane (coaxial approach), much like open surgery and in contrast to three-port VATS (para-axial approach) (11).

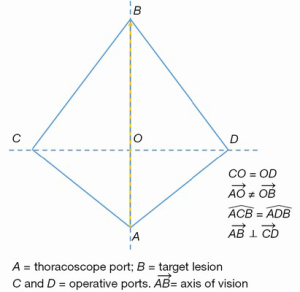

Figure 1 Ideal three-port VATS lobectomy settings.VATS, video-assisted thoracoscopic surgery.

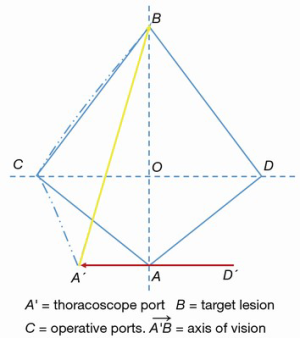

Figure 2 Real three-port VATS lobectomy settings. The real axis of the operation is translated posteriorly.VATS, video-assisted thoracoscopic surgery.

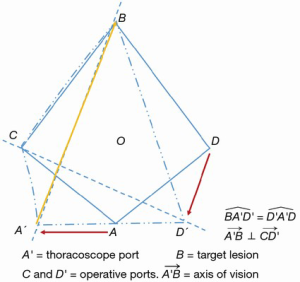

Figure 3 Anterior three-port VATS lobectomy settings.VATS, video-assisted thoracoscopic surgery.

Figure 4 Two-port VATS lobectomy settings.VATS, video-assisted thoracoscopic surgery.

Figure 5 Uniportal VATS settings. The thoracoscope and instruments are translated 90° along a sagittal plane passing from point C, bringing the operative instruments to address the target lesion from a vertical, caudo-cranial perspective. VATS, video-assisted thoracoscopic surgery.

Ergonomic characteristics of uniportal VATS

The VATS approach results in several ergonomic problems similar to laparoscopy and other minimally invasive surgical techniques. These relate to the large working area and rather static body position resulting in fatigue of the legs, extreme movements of the upper limbs and wrist as well as stiffness of the neck. The surgeon usually acts sideways from the patient during three-port VATS due to the position of the trocars which are fairly distant from the endoscope. The surgeon must rotate his or her torso and lean over the patient to operate, resulting in an unstable and tiring body position, which has to be maintained throughout the whole operation. In addition, the surgeon has to turn his or her neck and work in a different direction to the viewing direction of the monitor (12). In the uniportal VATS setup, the surgeon and the assistant should be positioned in front of the patient while in three-port access VATS the camera assistant could stand on the same or on the opposite side. Nevertheless, in our experience (13), the standing position of assistant surgeon in the three-port access suite was moved from the opposite side to the same side not only in major procedures but also in minor procedures to increase the assistant’s skill. In the uniportal VATS setting, the surgeon and the assistant are placed in front of the patient so that they have the same field of vision and improved coordination and ergonomics (14). In the Ergon-Trial (13), we chose to observe only thoracoscopic wedge resection since it is a frequently performed and relatively short procedure with technically standardized and clearly identifiable stages. Significant ergonomic benefits might be gained in the uniportal VATS environment suite as the viewing direction is brought back to the path orientation and restores the natural eye-hand-target axis. The physical workload, self-reported after performing uniportal VATS, is significantly less challenging with uniportal than with triportal VATS. The body posture during triportal VATS required more elbow flexion, causing prolonged use of the biceps muscle, and more wrist flexion, resulting in greater fatigue. In particular, due to instrument manipulation and interference from the surgical assistant, usually from his or her arm supporting the camera, the surgeon has to raise and abduct his shoulders, thus overloading the trapezius muscle. In contrast, the more neutral ergonomic posture during uniportal VATS enables manipulation without influencing instrument movements (13). Future research should evaluate the ergonomics in VATS major pulmonary resections investigating the effect of ergonomic interventions on physical and mental workload.

Conclusions

Standard three-port VATS has a trapezoidal configuration that interferes with the optical source by creating a new optical plane which generates a torsion angle not favorable with standard two-dimensional monitors. By contrast, the uniportal VATS approach to a lesion along a sagittal plane from a caudo-cranial perspective realizes a projective plane that preserves the depth of intraoperative visualization. The instruments, moving along parallel lines drawn from this plane, enable the surgeon to bring the operative fulcrum inside the chest. In addition, the uniportal VATS approach can significantly improve body posture during surgery since the surgeons can stand straight facing the monitor with minimal neck extension and rotation. This improved posture and more appropriate direction represent a substantial ergonomic advantage of uniportal VATS compared to the conventional triportal approach.
