Transcatheter pulmonic valve implantation in adult patients with prior congenital heart surgery
Introduction
Transcatheter pulmonary valve replacement (TPVR) has become an accepted modality of pulmonary valve replacement in suitable candidates. Large studies have demonstrated favorable hemodynamic profile in the mid-term with both the Melody (Medtronic Inc., Minneapolis, MN, USA) and Edwards Sapien Transcatheter Heart Valve (Edwards Lifesciences, Irvine, CA, USA) (1-5). As the population of patients with congenital heart defects continues to age, understanding the role of TPVR in the interventional armamentarium becomes of increasing importance. Therefore, we aimed to describe our single-center experience with TPVR in adult patients.
Methods
Patient population
This study was approved by the Baylor College of Medicine Institutional Review Board with waiver of informed consent. The Texas Children’s Hospital prospectively-maintained transcatheter pulmonary valve replacement database contains all patients undergoing TPVR from August 2010 through June 2020 including pre-procedure demographics, periprocedural data, and post-procedural outcomes. The database was queried for all adult patients (18 years or older) with congenital heart disease undergoing TPVR. Patients who underwent placement of a specifically designed TPV system for native outflow tracts e.g., the Harmony valve (Medtronic, Minneapolis, MN, USA) or Alterra Adaptive Prestent (Edwards Lifesciences, Irvine, CA, USA) were excluded from this study, as this technology has only become recently available.
Interventions
TPVR was performed using the standard technique. All procedures were performed with general anesthesia and biplane fluoroscopy/cineangiography. Heparin was administered to maintain activated clotting times of >250 seconds. In general, the femoral venous route was used for TPVR, however in some patients in whom the femoral veins were occluded, or who had extremely dilated right-sided structures (that made it challenging to deliver the valve from a femoral venous approach), the right internal jugular vein was used for TPVR delivery. All patients underwent coronary artery testing with balloon inflation in the right ventricular outflow tract (RVOT) to ensure the TPVR procedure would not result in coronary compression. TPVR was performed with the 22 mm Melody valve using 18, 20 or 22 mm ensemble delivery systems and with the Sapien valve using 23, 26 or 29 mm Sapien valves. A 65 cm-long Gore Dryseal Sheath (W. L. Gore and Associates, Flagstaff, AZ, USA) (6) was used towards the latter part of our experience to deliver all Sapien valves, in order to decrease the risk of tricuspid valve injury from the delivery system. Rapid right ventricular pacing was performed in patients undergoing TPVR within a native RVOT. The site of TPVR delivery was closed using sutured mediated closure devices or a figure of eight stich. All patients were admitted for overnight observation.
Study design and data collection
The study was designed to be descriptive in nature in order to review the patient demographics, procedural techniques, and outcomes following TPVR in adult patients with congenital heart disease for the Texas Children’s Hospital transcatheter pulmonary valve replacement database. Echocardiographic and cardiac magnetic resonance imaging (MRI) data was collected, however the degree of valvular regurgitation by cardiac MRI was prioritized for data reporting in this study. Patient demographics were collected at the time of TPVR. The TPVR operative reports are prospectively reviewed for entry into the database. Outcome data are updated at each patient visit or following correspondence with the patient or primary cardiologist if the patient is not followed primarily at Texas Children’s Hospital.
Statistical analysis
Continuous variables were assessed for normality graphically using histograms and QQ plots, and mathematically using the Shapiro-Wilk test for normality. Normally distributed variables were reported as mean (± standard error) and skewed variables were reported as median (interquartile range). Categorical variables are presented as count and a corresponding percentage of known. Survival data are described using Kaplan-Meier estimates and graphed with corresponding 95% confidence intervals (CIs). Only one patient was known to be deceased, therefore the remaining patients were censored as being alive at the time of their last follow-up. Valve survival was defined as freedom from valve explantation, valve-in-valve TPVR, or patient death. The cumulative incidence of endocarditis was calculated accounting for death prior to the development of endocarditis as a competing risk. As the study was designed to be descriptive in nature, no formal statistical testing was performed. All statistical analysis was performed with R version 4.1.0 (R Foundation for Statistical Computing, Vienna, Austria).
Results
Pre-procedural demographics
A total of 200 consecutive TPVR procedures were reviewed, of which, 81 (40.5%) were performed on patients older than 18 years. The majority of patients were male (46/81, 57%) and the median age was 26 years (IQR 21–37) with median weight 71.0 kg (IQR 54.6–89.0). In the cohort, 45 (56%) patients had tetralogy of Fallot, ten (12%) patients had a prior Ross procedure, seven (9%) had congenital pulmonary stenosis, five (6%) had double outlet right ventricle with transposition of the great arteries, four (5%) had pulmonary atresia (PA) with intact ventricular septum, four (5%) PA with ventricular septal defect (PA/VSD), four (5%) with truncus arteriosus, and two (2%) had other defects. The majority of TPVR procedures were performed into RVOT consisting of homografts (31/81, 38%), bioprosthetic valves (23/81, 28%), or native RVOT (16/81, 20%). For patients with conduits, the median time since last conduit placement was 15 years (IQR 10–21) with 7/81 (9%) patients having previously placed RVOT conduit stents. Prosthetic valves had been placed in heterotopic positions in four (5%) patients, including two in the tricuspid position, one aortic position, and one mitral position. A permanent pacemaker had been established in eight (10%) patients, including five (6%) transvenous and three (4%) epicardial. Three patients (4%) had a prior history of endocarditis.
Prior to TPVR, two (2%) patients had severe tricuspid regurgitation by echocardiogram or MRI, 22 (27%) had moderate regurgitation, and 34 (42%) had mild regurgitation. The mean RVOT gradient was 28 mmHg (IQR 11–38 mmHg) by echocardiogram with a maximum RVOT gradient of 44 mmHg (IQR 25–66 mmHg). Preoperative evaluation by echocardiogram or MRI demonstrated severe pulmonary regurgitation in 44 (54%) patients, moderate regurgitation in 22 (27%) patients, and mild regurgitation in nine (11%) patients. Table 1 reviews all pre-procedural demographics for the 81 adult patients undergoing TPVR.
Table 1
| Demographics | All (n=81) |
|---|---|
| Age (years) | 26 [21–37] |
| Weight (kg) | 71.0 (54.6–89.0) |
| Male sex | 46 (57%) |
| Congenital defect | |
| Tetralogy of Fallot | 45 (56%) |
| Ross | 10 (12%) |
| Pulmonary stenosis | 7 (9%) |
| DORV + TGA | 5 (6%) |
| PAIVS | 4 (5%) |
| PAVSD | 4 (5%) |
| Truncus arteriosus | 4 (5%) |
| Other | 2 (2%) |
| RVOT conduit/valve type | |
| Homograft | 31 (38%) |
| Bioprosthetic valve | 23 (28%) |
| Native RVOT/valve | 16 (20%) |
| Valved conduit | 2 (2%) |
| Contegra | 2 (2%) |
| Other | 5 (6%) |
| Unknown | 1 (1%) |
| Original conduit size | |
| 13 mm | 1 (1%) |
| 15 mm | 1 (1%) |
| 16 mm | 2 (2%) |
| 17 mm | 1 (1%) |
| 18 mm | 5 (6%) |
| 19 mm | 1 (1%) |
| 20 mm | 2 (2%) |
| 21 mm | 1 (1%) |
| 22 mm | 8 (10%) |
| 23 mm | 13 (16%) |
| 24 mm | 4 (5%) |
| 25 mm | 13 (16%) |
| 26 mm | 2 (2%) |
| 27 mm | 6 (7%) |
| Time since last conduit placement in years | 15 [10–21] |
| Existing RVOT conduit stents present | 7 (9%) |
| Other prosthetic valves | |
| Tricuspid | 2 (2%) |
| Aortic | 1 (1%) |
| Mitral | 1 (1%) |
| None | 77 (95%) |
| Existing permanent | |
| Pacemaker | 73 (90%) |
| None | 5 (6%) |
| Transvenous | 3 (4%) |
| Epicardial | |
| Prior history of endocarditis | 3 (4%) |
| Tricuspid regurgitation severity (Echo/MRI) | |
| None | 3 (4%) |
| Trivial | 17 (21%) |
| Mild | 34 (42%) |
| Moderate | 22 (27%) |
| Severe | 2 (2%) |
| Echo RVOT max gradient pre-op | 44 [25–66] |
| Echo RVOT mean gradient pre-op | 28 [11–38] |
| Pre-implant RV systolic pressure | 52 [43–70] |
| Pre-implant systolic PA pressure | 28.5±7.4 |
| Pre-implant mean PA pressure | 18.1±5.1 |
| RVOT peak gradient | 24 [9–40] |
| Pre-implant aortic systolic pressure | 90 [83–100] |
| Narrowest RVOT diameter | 16.5 (4.7) |
| Pulmonary regurgitation pre-op (Echo/MRI) | |
| None | 3 (4%) |
| Trivial | 2 (2%) |
| Mild | 9 (11%) |
| Moderate | 22 (27%) |
| Severe | 44 (54%) |
Data are presented as N (%), median [interquartile range] or mean ± standard deviation. DORV, double-outlet right ventricle; TGA, transposition of the great arteries; PAIVS, pulmonary atresia with intact ventricular septum; PAVSD, pulmonary atresia with ventricular septal defect; RVOT, right ventricular outflow tract; mm, millimeter; Echo, echocardiogram; MRI, magnetic resonance imaging.
Transcatheter pulmonary valve replacement
A Melody valve was implanted in 53 (65%) patients with a Sapien valve implanted in 28 (35%) patients (S3 in 20, XT in eight). Pre-stenting was performed in 49 (52%) patients, including two stents in nine (11%) patients and three stents in two (2%) patients. Post-dilatation was performed in 55 (68%) patients. Concomitant procedures were performed in 13 (16%) patients and six (7%) patients experienced peri-procedural complications. The median RVOT gradient following TPVR was seven (IQR 4–10) mmHg. Procedural details are presented in Table 2. We placed a TPV in 23 (28%) patients with an existing bioprosthetic pulmonary valve (valve-in-valve procedure) and in two patients in this series, frame fracture of the bioprosthetic valve was performed with high pressure balloons, to allow for a larger TPV orifice.
Table 2
| Variable | Value |
|---|---|
| TPV type | |
| Melody | 53 (65%) |
| Sapien | 28 (35%) |
| Valve size | |
| 18 mm | 7 (9%) |
| 20 mm | 2 (2%) |
| 22 mm | 42 (52%) |
| 23 mm | 4 (5%) |
| 24 mm | 1 (1%) |
| 25 mm | 1 (1%) |
| 26 mm | 11 (14%) |
| 29 mm | 13 (16%) |
| Number of pre-stents performed | |
| None | 39 (48%) |
| One | 31 (38%) |
| Two | 9 (11%) |
| Three | 2 (2%) |
| Post-dilatation performed | 26 (32%) |
| Concomitant procedures Performed | |
| Pulmonary valvuloplasty | 4 (5%) |
| Left PA angioplasty | 3 (4%) |
| Right PA angioplasty | 2 (2%) |
| Tricuspid valve implant | 2 (2%) |
| Aortopulmonary collateral closure | 1 (1%) |
| Impella placement | 1 (1%) |
| Complications | |
| Cardiac arrest | 2 (2%) |
| Bronchial hemorrhage | 1 (1%) |
| Atrial flutter | 1 (1%) |
| RFA pseudoaneurysm | 1 (1%) |
| Valve malposition | 1 (1%) |
| Post-valve RV systolic pressure | 39±8.9 |
| Post-valve systolic PA pressure | 32 [27–36] |
| Post-valve mean PA pressure | 21 [17–25] |
| Post-valve RVOT gradient peak | 7 [4–10] |
| Post-valve aortic pressure | 101±14.3 |
Data are presented as N (%), median [interquartile range], or mean ± standard deviation. TPV, transcatheter pulmonary valve; RFA, right femoral artery; RV, right ventricle; PA, pulmonary artery, RVOT, right ventricular outflow tract.
Outcomes

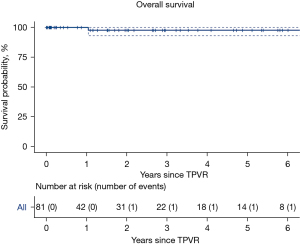

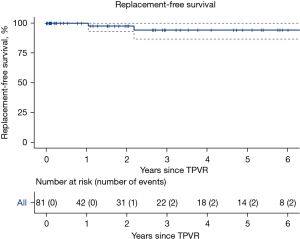

Median follow-up was 1.1 years (IQR 0.1–3.3 years). The most recent mean RVOT gradient was a median 14 mmHg (IQR 9–18 mmHg) with median maximum RVOT gradient 19 mmHg (IQR 15–27 mmHg). At most recent echocardiogram or MRI, pulmonary regurgitation was severe in one (1%) patient, moderate in six (7%) patients, mild in 21 (26%) patients, and trivial-to-none in 53 (66%) patients. One patient died 1.04 years following TPVR from severe heart failure. Overall survival at the median follow-up time of 1.1 years was 98% (95% CI: 93–100%, Figure 1). One patient had a second TPVR performed 2.18 years following initial TPVR for severe pulmonary regurgitation. Valve survival after 2.2 years was 94% (95% CI: 87–100%, Figure 2). Patient outcomes are summarized in Table 3.
Table 3
| Variable | Values |
|---|---|
| Follow-up duration (years) | 1.1 [0.1–3.3] |
| Most recent echo max RVOT gradient | 19 [15–27] |
| Most recent echo mean RVOT gradient | 14 [9–18] |
| Most recent echo or MRI PR severity | |
| None | 29 (36%) |
| Trivial | 24 (30%) |
| Mild | 21 (26%) |
| Moderate | 6 (7%) |
| Severe | 1 (1%) |
| Endocarditis diagnosed | 4 (5%) |
| Any RVOT reintervention | 1 (1%) |
| Death | 1 (1%) |
Data are presented as N (%) or median [interquartile range]. Echo, echocardiogram; RVOT, right ventricular outflow tract; MRI, magnetic resonance imaging; PR, pulmonary regurgitation.
Endocarditis

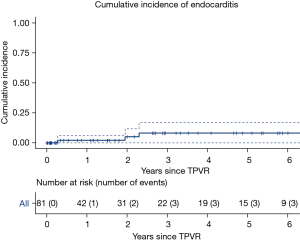

Patients were followed for a total 167 valve-years of follow-up. Four patients developed endocarditis at 99, 712, 839, and 2,442 days following TPVR, respectively. Endocarditis occurred at an incidence rate of 2.4 cases per 100 valve-years of follow-up. The cumulative incidence of endocarditis was 2% (95% CI: 0–6%, Figure 3) at one year and 8% (95% CI: 0–16%) at three years. Blood cultures were positive in three (75%) patients and included Staph aureus, Strep mitis, and Rothia dentocariosa. Only one (25%) patient had echocardiographic evidence of TPVR involvement. A summary of the patients that developed endocarditis is presented in Table 4. All patients were treated with six weeks of antibiotics and none required valve explantation.
Table 4
| Patient | Age | Sex | Congenital defect | RVOT conduit | History of endocarditis | TPVR valve | Days to endocarditis | Blood cultures | Organism | TPVR involvement |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 19 | M | TOF | Perimount | − | Melody | 2,442 | + |
|
+ |
| 2 | 25 | M | TOF | Perimount | − | Melody | 839 | + |
|
− |
| 3 | 32 | M | Ross | Homograft | − | Melody | 712 | − | − | |
| 4 | 23 | M | Ross | Non-valved Goretx | + | Melody | 99 | + |
|
− |
RVOT, right ventricular outflow tract; TPVR, transcatheter pulmonary valve replacement; M, male; TOF, tetralogy of Fallot.
Discussion
Summary
This series demonstrates favorable results with TPVR in the adult congenital heart disease population. A limited number of patients have experienced major complications, including endocarditis and severe pulmonary regurgitation, and only one patient died during follow-up as a result of heart failure unrelated to the TPVR. During follow-up the development of worse than mild pulmonary regurgitation or elevated valve gradients were rare events.
Relation to prior studies
Compared to other series, this series had a similar proportion of patients with tetralogy of Fallot as the underlying congenital defect (1-5). These studies report 0–4% of patients requiring a reintervention during follow-up, a range that includes our reported 1%. Compared to a report of surgical implantation of Epic Supra valves (7) the TPVR patients had similar rates of freedom from valve replacement (100% compared to 94% at three years). Our rate of 2.4 cases of endocarditis per 100 valve-years follow-up is similar to a recently published multicenter study, which reported 2.2 cases per 100 valve-years of follow-up (8). In our study, all patients who had endocarditis had undergone TPVR with a Melody valve, however, endocarditis has been observed with both Melody and Sapien valves (8). In addition, factors other than the valve type should be considered in the overall risk assessment for development of possible endocarditis for these patients. A study of all patients undergoing TPVR identified older age was associated with improved freedom from valve replacement and a freedom from endocarditis >90% (9) and another study found age of <12 years of age and residual gradients of >15 mmHg to be risk factors for development of endocarditis (10). In most cases, endocarditis can be treated with antibiotic therapy with or without surgical replacement of the TPVR, and in some instances (e.g., fungal endocarditis), lifelong oral therapy may be needed (11).
In this series, we placed a TPV in 23 (28%) of patients with an existing bioprosthetic pulmonary valve (valve-in-valve procedure). This has been found to be effective if the internal diameter of the bioprosthetic valve is sufficient (2). In addition, frame fracture of the bioprosthetic valve was performed with high pressure balloons in this particular cohort in two patients. If this can be performed (depending on the bioprosthetic valve type), this allows for a larger effective orifice of the TPV (12). We administer lifelong aspirin to patients after TPVR and in some patients with bioprosthetic valves (surgical or transcatheter) we have used anticoagulation for three to six months (13).
Implications and surgical planning for future TPVR
Despite these limitations, the presented series can be used to support the use of TPVR in the adult congenital heart disease population and represents an alternative to a redo sternotomy for the indication of pulmonary valve replacement. While the demand for pulmonary valve replacement is smaller in adults with acquired heart disease, it would be reasonable to expect similar results following TPVR in the acquired population, if not improved, compared to the population of adults with congenital heart disease.
More and more patients nowadays are demanding minimally invasive procedures, particularly patients with multiple comorbidities or patients with prior multiple surgeries. For that reason and in anticipation for future TPVR, surgeons nowadays try their best to implant the biggest right ventricle to pulmonary artery conduits or surgical pulmonary valves possible at the time of surgery; whether in initial or subsequent surgeries; to give their patients the chance to have TPVR in the future as an alternative to redo-surgeries to upsize their conduits. Other special circumstances must also be considered. In patients who have undergone a Ross operation, iatrogenic aortopulmonary fistulas may occur after the TPVR procedure (14,15) and future surgeries on the RVOT may also require aortic root re-replacement. Future research should also be undertaken to mitigate such scenarios.
Limitations
This study is limited by the relatively short follow-up among the patient cohort and it is imperative to follow these patients closely over time to determine the true longevity of TPVR in this specific patient population. Additionally, these patients represent a carefully selected population from a single center and may not represent generalizable results if applied to the total adult congenital heart disease population. Unfortunately, due to sample size and limited number of complications, patient and operative factors could not be evaluated for association with the development of endocarditis or valve replacement. Finally, not all patients are followed by cardiologists within our institution, therefore, the most recent follow-ups for some patients are dependent on updates provided by the patient’s local cardiologist.
Future directions
Additional research should focus on comparison of transcatheter and surgical techniques for pulmonary valve replacement, although these studies may be limited by the differing indications for performing surgical and transcatheter pulmonary valve replacements. Efforts should be taken to understand the natural history of valve degeneration and functional outcomes in-vivo following transcatheter deployment. Finally, understanding patient-centered outcomes, such as return to normal activities, freedom from hospitalization, and freedom from additional procedures would assist policy makers and patients in appreciating the role of TPVR in the armamentarium of managing the adult congenital heart disease population. TPVR procedures in adults, who require multiple cardiac surgical and interventional procedures over their lifetime, represents a vital area of collaboration between cardiac surgeons and interventional cardiologists.
Conclusions
Many adults who have undergone prior congenital heart surgery can undergo TPVR with favorable results. Future research in this population is needed with a focus on total valve longevity and patient reported outcomes. Improvement in our understanding of the interplay between TPVR and surgical PVR in this population will help further refine this technology.
