Renal protective effect of the aortic balloon occlusion technique in total arch replacement with frozen elephant trunk

Introduction

Total aortic arch replacement with frozen elephant trunk (TAR with FET) has become a routine surgical procedure to treat complex aortic arch disease in China since it was first used in clinical practice for the treatment of type A aortic dissection (1). Moderate hypothermic circulatory arrest (MHCA) with selective cerebral perfusion (SCP) is widely used in aortic arch surgery and provides equivalent cerebral and visceral protection compared with deep hypothermic circulatory arrest (DHCA) with SCP (2-4). However, prolonged hypothermic circulatory arrest inevitably impacts distal viscera, especially the kidneys (5-7). Those with postoperative renal dysfunction have higher mortality and more complications than those without (8). We have reported that the aortic balloon occlusion (ABO) technique shortens the circulatory arrest time to approximately 5 minutes compared to the previous average of 20–25 minutes and allows surgeons to safely perform operations at higher temperatures (9). However, there is no systemic data to indicate whether the ABO technique, which significantly shortens the MHCA time, improves the organ protective effect in TAR with FET. This study aimed to determine whether the ABO technique provides better distal visceral protection, especially for the kidney, than MHCA in patients who underwent TAR with FET, and to analyze the predictors of acute kidney injury (AKI) and continuous renal replacement therapy (CRRT) after TAR with FET.

Methods

Patients

A retrospective review of the Fuwai Hospital medical record system identified 247 patients who underwent TAR with FET in the vascular surgery center between August 2017 and September 2018. Patients were divided into two groups: the ABO and MHCA groups. This retrospective study was approved by the ethics committees of Fuwai Hospital, and written informed consent was waived.

Operative technique

The surgical procedures for the MHCA group have been described in previous articles (10). Patients were placed on cardiopulmonary bypass (CPB) by cannulation of the right atrium and the right axillary artery. Cannulation of the right axillary artery was also used for antegrade SCP. During the cooling phase, aortic root procedures were performed, if necessary. Circulatory arrest was instituted when the nasopharyngeal temperature reached 24 °C. Furthermore, antegrade SCP was started at a rate of approximately 5–8 mL/(kg·min). The aortic arch was transected between the left common carotid and left subclavian arteries. Next, the stented elephant trunk (Cronus, MicroPort Endovascular Shanghai Co, Ltd, China) was inserted into the true lumen of the descending aorta and released. At this time, surgeons needed approximately 20 minutes to anastomose the descending aorta and the stented elephant trunk to the 4-branched prosthetic graft (Vascutek Terumo, Tokyo, Japan; 28–30 mm in diameter). When anastomosis was complete, perfusion of the lower body was resumed through the perfusion limb of the 4-branched graft, and the CPB flow was gradually returned to one half of the full rate (1.1–1.2 L/min·m⁻²). Epiaortic vessel reconstruction, proximal arch anastomosis, rewarming and closure completed the procedure.

The ABO technique has been described previously (9). It is a practical improvement based on conventional surgical procedures and fully utilizes the advantages of the frozen elephant trunk, namely, the metal “skeleton” and can be performed on any patient treated with an FET. The main difference from MHCA lies in the CPB management methods used to complete distal aortic arch anastomosis. Patients in the ABO group were placed on CPB by cannulation of the femoral artery in addition to the right axillary artery and right atrium. Cannulation of the right axillary artery was also used for antegrade SCP. We prepared the ABO device as shown in Figure 1A. When the patients temperature reaches to 28 °C, 3–5 min of MHCA is used to release of the stent graft into the true lumen of the descending aorta (Figure 1B). Once the stent is released, the aortic balloon (Coda Balloon Catheter, Cook Incorporated, Bloomington, IN, USA) with the sheath (W.L. Gore & Associates, Inc., Flagstaff, AZ, USA) is deployed into the metal part of the stented graft and 40–45 mL of saline was injected into the balloon (Figure 1C). Perfusion of the lower body is then resumed through the femoral artery and the CPB flow is gradually returned to one half of the full rate (1.1–1.2 L/min·m⁻²). The surgeon is then able to reconstruct the distal aortic arch with perfusion of the lower body (Figure 1D). The reaminder of the operation is the same as for patients treated with MHCA alone. Since cannulation of the femoral artery is part of our ABO technique, we listed severe malperfusion of the bilateral lower limb as a contraindication. Furthermore, habits of the surgeons played an important role in whether the ABO technique was used in the operation.

Figure 1 Main procedures of the aortic balloon occlusion technique. (A) The aortic balloon in a sheath was passed through the trimmed 4-branched graft in advance; (B) during selective cerebral perfusion, the stented elephant trunk was inserted into the true lumen of the descending aorta; (C) the aortic balloon with the sheath was deployed into the metal part of the stented graft and inflated with saline. Next, perfusion of the lower body was resumed from the femoral artery; (D) the 4-branched prosthetic graft was anastomosed with the descending aorta and stented elephant trunk with perfusion of the brain and lower body simultaneously.

Endpoints and data definition

The primary endpoint was postoperative AKI defined by the Kidney Disease Improving Global Outcomes (KDIGO) criteria with slight modifications (Table 1). Postoperative AKI was defined as a postoperative serum creatinine (SCr) increase of more than 50% of baseline or if there was an increase of 26.5 μmol/L (0.3 mg/dL) at 48 hours postoperatively. Preoperative SCr values nearest the time of surgery were used as the baseline SCr levels. The highest SCr values within 48 hours after surgery were collected. Urine output was excluded because of the difficulty and inaccuracy of the retrospective data.

Table 1 Grades of AKI using the KDIGO criteria
Full table

The secondary endpoints included intraoperative transfusion, duration of mechanical ventilation, ICU and hospital lengths of stay, and adverse clinical outcomes, such as in-hospital mortality, reoperation for hemostasis, stroke, paraplegia, the use of intra-aortic balloon pump (IABP) and tracheotomy.

Demographic data, information on concomitant procedures and parameters concerning CPB were also collected.

Malperfusion syndrome can involve all organs of the body. Myocardial malperfusion was defined as acute myocardial infarction with ST segment elevation and a significantly increased value of serum cardiac troponin I. Cerebral and gastrointestinal malperfusion were defined as alteration in mental status and symptoms of abdominal pain or distention, respectively. Limb malperfusion was defined as the absence of pulse with limb compromise.

Statistical analysis

Descriptive statistics for categorical variables are reported as the frequency and percentage, whereas continuous variables are reported as the mean ± standard deviation (SD) or median with interquartile range (IQR), depending on a normal distribution. Disordinal categorical variables were compared with the Pearson χ² test or Fisher’s exact test, and ordinal categorical variables were compared with the Mann-Whitney U test. Continuous variables were compared with Student’s t test or Mann-Whitney U test as appropriate. Logistic regression models were used to find the protective and risk factors for AKI and CRRT after TAR with FET. All potential covariates of interest were included in a univariable logistic regression model. The multivariable logistic regression model included significant variables (P<0.1) in univariable logistic regression. For all analyses (beyond the univariate analysis), a P value of <0.05 was considered to be statistically significant, and all statistical tests were 2-sided. Data were analyzed using SPSS, version 21.0 (SPSS, Inc., Chicago, IL, USA).

Results

Demographic data

The mean age of all 247 patients was 47.8±10.9 years (range 18 to 77), and 76.1% were male (n=188). The ABO technique was performed in 100 (40.5%) patients, and the other 147 (59.5%) patients underwent surgery with MHCA. As described in Table 2, few significant differences in the baseline data existed between the groups, except for age (ABO 49.8±12.5 years vs. MHCA 46.4±9.6 years, P=0.02).

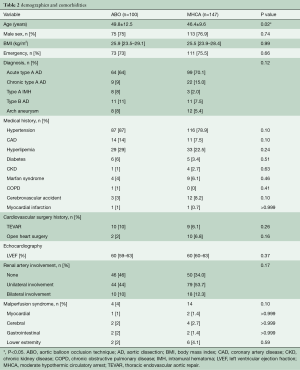

Table 2 demographics and comorbidities
Full table

Operative characteristics

Table 3 demonstrates the concomitant procedure data and CPB information. There was an equivalent percentage of concomitant procedures between the two groups. The patients in the ABO group underwent circulatory arrest at warmer nasopharyngeal (ABO 28.1, IQR: 27.4–28.5 vs. MHCA 24.7, IQR: 24.1–25.1, P<0.001) and bladder (ABO 29.2, IQR: 28.5–29.9 vs. MHCA 27.2, IQR: 26.3–28.2, P<0.001) temperatures than those in the MHCA group. Additionally, circulatory arrest time (ABO 4, IQR: 3–6 vs. MHCA 18, IQR: 16–20, P<0.001) of the ABO group was significantly shorter than that of the MHCA group. There was no significant difference in the CPB time (ABO 170, IQR: 148–200 vs. MHCA 161, IQR: 142–193, P=0.13) or aortic cross clamp time (ABO 111, IQR: 93–134 vs. MHCA 108, IQR: 89–128, P=0.08) between the two groups.

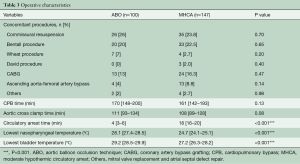

Table 3 Operative characteristics
Full table

Primary and secondary endpoints

Table 4 shows the main outcomes of this study. The preoperative SCr values were similar between the two groups (ABO 82, IQR: 69–104 vs. MHCA 85, IQR: 68–112, P=0.31). In the ABO group, peak postoperative SCr values (ABO 124, IQR: 97–173 vs. MHCA 146, IQR: 108–221, P=0.008) and maximum perioperative SCr variation (ABO 61.5±78.7 vs. MHCA 83.7±89.7, P=0.004) were significantly lower than those in the MHCA group. According to the KDIGO criteria, there was a significant difference in post-operative AKI between the two groups (P=0.04): more patients in the ABO group (ABO 33% vs. MHCA 23.1%) avoided AKI and more patients in the MHCA group (ABO 21% vs. MHCA 32%) were diagnosed with high-grade (Grade 2 and Grade 3) AKI. The number of patients diagnosed with Grade 1 AKI was similar between the two groups (ABO 46% vs. MHCA 44.9%). Approximately 8% of patients needed CRRT postoperatively, and there was no significant difference between the two groups (ABO 8% vs. MHCA 8.2%, P=0.96). Both the rate (ABO 8% vs. MHCA 26.5%, P<0.001) and amount (ABO 0, IQR: 0–0 vs. MHCA 0, IQR: 0–1, P<0.001) of packed red blood cells (PRBCs) used in the ABO group were lower than those used in the MHCA group. There was no significant difference in ICU or hospital length of stay, or in the incidence of major adverse events between the two groups. Although there was no significant difference, the proportion of ventilation time less than 12 hours in the ABO group was higher than the proportion in the MHCA group (ABO 18% vs. MHCA 11.6%, P=0.15).

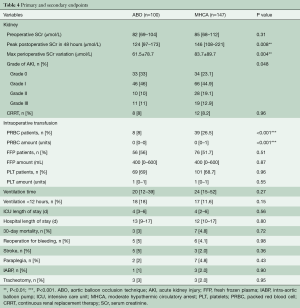

Table 4 Primary and secondary endpoints
Full table

Regression analysis

The regression analysis results are provided in Table 5. Several variables were associated with AKI and CRRT according to univariable analysis (P<0.1). For AKI, we found that the ABO technique (OR 0.52; 95% CI: 0.28–0.96; P=0.03) and high preoperative SCr values (>200 μmol/L) (OR 0.18; 95% CI: 0.04–0.83; P=0.03) were associated with lower odds of postoperative AKI, while older age (OR 1.04; 95% CI: 1.01–1.07; P=0.003), elevated body mass index (BMI) (OR 1.12; 95% CI: 1.03–1.22; P=0.006) and renal artery involvement (OR 1.83; 95% CI: 1.01–3.34; P=0.04) were identified as independent risk factors for postoperative AKI according to multivariable analysis. For CRRT, we found that female sex (OR 4.00; 95% CI: 1.09–14.70; P=0.04), diabetes (OR 7.18; 95% CI: 1.16–44.35; P=0.03), malperfusion of gastrointestinal tract (OR 115.67; 95% CI: 6.66–2,009.68; P=0.001) or lower extremity (OR 18.99; 95% CI: 2.66–135.35; P=0.003), CPB time (OR 1.02; 95% CI: 1.01–1.03; P=0.001) and concomitant CABG (OR 6.54; 95% CI: 1.86–23.00; P=0.003) were independent risk factors for CRRT according to multivariable analysis.

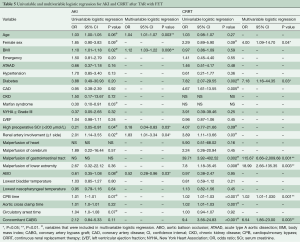

Table 5 Univariable and multivariable logistic regression for AKI and CRRT after TAR with FET
Full table

Discussion

In our study, we found that the ABO technique was an effective protective strategy for the kidney during the TAR with FET procedure and was also a protective factor for AKI. However, it was not a protective factor for CRRT after TAR with FET. The ABO technique also reduced intraoperative PRBC use. Many predictors were identified to be independent risk factors for AKI and CRRT after TAR with FET.

In our cohort, the incidence of AKI in patients who underwent TAR with FET under MHCA with SCP was 76.9%, similar to the incidence of 75.6% in a previous report from our hospital (2). The incidence of AKI after aortic arch operation varied from 13% to 45% in previously published literature, which was significantly lower than the incidence found in our report (7,11,12). There are three possible reasons for this difference; a lack of consistent diagnostic criteria for AKI, different surgical procedures, and an insufficient sample size. From our perspective, this was a reasonable study with a relatively large sample size and the use of specific KDIGO criteria to investigate AKI incidence after an identical procedure, TAR with FET.

With the development of surgical techniques and strategies for organ protection, TAR with FET under MHCA with SCP has achieved great outcomes with low mortality and fewer severe complications (12,13). However, for further improvement of therapeutic efficacy, organ dysfunction caused by prolonged circulatory arrest remains a serious problem. According to recent reports, circulatory arrest time varies from 15 to 50 min, and the temperature during circulatory arrest is mostly set at 22–26 °C (2,13,14). The ABO technique reported by Xiaogang Sun was the first one to shorten the circulatory arrest time to approximately 5 minutes and safely raise the circulatory arrest temperature to approximately 28 °C (9). This was also the first study to systematically evaluate the renal protective effect of ABO technique.

By comparing perioperative SCr values and AKI incidence between the ABO and MHCA groups, we found that the ABO technique was associated with lower postoperative SCr values at 48 hours and a reduced incidence of postoperative AKI. Furthermore, multivariable logistic regression confirmed that the ABO technique was a protective factor for postoperative AKI. Therefore, we consider that ABO technique is an effective strategy to decrease the incidence and severity of AKI after surgery and to protect renal function despite a higher intraoperative core temperature. Tracing the history of organ protection in aortic surgery will provide a reasonable explanation. The application of DHCA represents the beginning of organ protection in aortic arch surgery (15). When SCP was used intraoperatively, it significantly reduced complications of the cerebrum and allowed surgeons to perform operations under moderate hypothermia (2,4,11,16,17). Thus, just as SCP improves the protection of the cerebrum by maintaining cerebral perfusion, the main protective mechanism of the ABO technique is that this technique shortens the circulatory arrest time and improves renal perfusion.

Unfortunately, the ABO technique did not reduce the rate of CRRT. There may be two reasons for this outcome. Firstly, compared with the more than 16% incidence of CRRT after surgery reported in previous literature (12,13), the rate of CRRT found in our cohort was extremely low. Thus, it is likely that the current study is underpowered to demonstrate a difference in CRRT requirement between the two groups given. Secondly, postoperative CRRT is associated with multiple factors. A previous study has reported that chronic kidney disease, lower limb ischemia, hyperkalemia, severe metabolic acidosis, heart failure be related to CRRT after surgical repair of type A aortic dissection (18). Our multivariable logistic regression found that many variables unrelated to the kidney were identified as independent risk factors for postoperative CRRT and our clinical practice also found that the indications for CRRT are varied, not just for severe AKI. Therefore, the ABO technique cannot change the outcome of these high-risk patients.

With the development of surgical technology and the increase in circulatory arrest temperature, transfusion in aortic surgery has already decreased, but is still higher than that of other cardiac surgeries (2,11). In our study, we found that the rate and amount of intraoperative PRBC transfusion in the ABO group were further reduced, compared with those in the MHCA group. Some previous studies have reported that a longer hypothermic CPB time and DHCA are associated with a higher risk of postoperative bleeding volume and perioperative blood transfusion (19-21). The ABO technique raises the temperature during CPB, which can reduce both the coagulopathy and perioperative blood-loss in the aortic arch surgery (19). However, the habits of surgeons are also an important factor influencing blood transfusion intraoperatively.

Our study found that the ventilation time in the ABO group was shorter than that of the MHCA group, and a higher percentage of patients in the ABO group were weaned from ventilation within 12 hours, although the difference was not significant. In our institute, protocols to wean patients from ventilation are normally initiated as soon as consciousness is regained. We interpret this outcome as a faster recovery of brain function from the impact of hypothermia and anesthesia. This phenomenon may be related to the elevated temperature and shortened time of the brain’s dependence on SCP.

Many previous studies have reported risk and protective factors for AKI after aortic surgery (5-7,21). A higher baseline GFR (Glomerular Filtration Rate), and better LVEF were associated with lower odds of developing AKI, and a longer CPB time, male sex, increased age, elevated BMI and hypertension history were associated with increased odds of AKI. Our study also found that older age, elevated BMI and renal artery involvement were risk factors for AKI, which is similar to previous studies. In addition, the ABO technique is a protective factor for AKI, convincingly proving that this technique can effectively protect renal function during the operation. Our study also found that higher preoperative SCr values (>200 μmol/L) was a protective factor for AKI, which was not only different from previous studies (6), but also seems to go against evidence from clinical practice. By further analyzing the clinical data of all patients, we found only 8 patients with preoperative SCr values greater than 200 μmol/L. The proportion is so low that the result may be accidental. Among these 8 patients, 7 patients were diagnosed with aortic dissection, mainly with renal artery involvement (5 in 7 patients). TAR with FET is an effective strategy for opening up the true lumen of the aorta. After surgery, renal function improves with better perfusion, so postoperative AKI cannot be diagnosed owing to a decrease or mild increase in SCr values, which made higher preoperative SCr values a protective factor for AKI in the statistical analysis.

There are some limitations in our study. Owing to the retrospective design, there may be unaccounted bias in our results, but we have attempted to avoid this as much as possible. Four different cardiac surgeons performed all 247 surgeries. It is possible that inherent surgeon bias may have influenced the results. Much meaningful data cannot be collected retrospectively, which may affect the thorough evaluation of the ABO technique. The sample size was slightly insufficient. In the multivariate logistic regression for CRRT, the risk of overfitting should have been considered given that the number of CRRT events was low relative to many of the included variables. Consequently, further exploration, such as expanding the sample size and prospective research will be necessary.

Conclusions

The ABO technique significantly shortens circulatory arrest time and safely elevates temperature and provides better protection for the kidney in patients who undergo TAR with FET. However, this technique does not reverse the need for CRRT or reduce mortality and major adverse events. Therefore, the ABO technique should be applied for the unhurried suturing of distal anastomoses during the FET procedure. In addition, it may be better to exploit new frontiers to radically improve clinical outcomes.
