Extended thoracic lymph node dissection in robotic-assisted minimal invasive esophagectomy (RAMIE) for patients with superior mediastinal lymph node metastasis

Introduction

Esophageal cancer is the sixth ranking cause of cancer-related mortality world-wide and due to its complex and highly invasive treatment or cancer of the gastro-esophageal junction (GEJ), it is associated with a major impact on quality of life for patients (1-3). Early symptoms are subtle and therefore the majority of the patients are diagnosed at an advanced stage (2,3). The cTNM stage in the majority of patients (>70%) with curative disease is cT3-4N1-2 (2,3). Complete lymphadenectomy during surgical resection is important for adequate nodal staging. The number of nodes removed has been shown to improve survival in esophageal cancer patients (4). The extent of lymphadenectomy during oncological esophagectomy however, is not standardized (4). The paratracheal stations [2,4,5] (5) are often avoided as this area is difficult to reach and dissection is considered technically challenging (6-9). Therefore, upper mediastinal dissection is associated with an increased risk of recurrent laryngeal nerve (RLN) palsy, vagal nerve damage and damage of the membranous part of the trachea (6-9). However, in a significant number of patients, preoperative imaging [fluor-18-deoxyglucose positron-emission-tomography-computed tomography (FDG-PET-CT) or endoscopic ultrasonography] shows lymph node metastasis in the superior mediastinum. Precise lymphadenectomy above the level of the of the azygous vein arcus in these patients is important to offer optimal treatment (6-9).

Open surgery is the gold standard in oncological esophagectomy, including incisional access to 2–3 compartments, of which the thoracic phase has the highest impact on postoperative morbidity (10,11). Thoracoscopic robot-assisted minimally invasive surgery has the advantage of reducing invasiveness combined with improved visual and dissection capabilities over open surgery (12,13). Results of the recently published ROBOT trial showed improved clinical outcomes with reduced surgical and cardiopulmonary complication rates, reduced pain and improved functional outcomes of the robot-assisted procedure over open surgery (14,15). Furthermore, in open surgery, access to the thoracic cavity is hampered by the ribs and scapula, especially where a detailed view of the thoracic aperture is needed in patients who need lymphadenectomy in the superior mediastinum (12,13). For this patient group in particular, robot-assisted minimally invasive esophagectomy (RAMIE) could be very useful in achieving a complete nodal harvest with a minimal risk of complications (12,13).

The objective of this study was to describe the clinical outcomes of esophageal cancer patients with lymph node metastasis in the superior mediastinum operated in our hospital with RAMIE. We focus on complication rates (in particular recurrent nerve damage), histopathological results and oncological outcomes.

Methods

Patients

From May 2007–Sept 2018, patients without evidence of distant metastases or cT4b disease that underwent curative robot-assisted thoraco-laparoscopic esophageal resection were identified in our prospectively maintained database. Patients were selected for this study when preoperative staging showed evidence of nodal disease in the superior mediastinum by PET-CT or endoscopic ultrasound with positive cytology on fine-needle aspiration. All patients were discussed in a multidisciplinary tumor board before treatment and underwent routine staging including gastroduodenoscopy, endoscopic ultrasonography, ultrasonography of the neck and a (PET) CT-scan of the thorax-abdomen. When needed, endobronchial ultrasonography was performed with FNA of possible involved lymph nodes. Institutional review board approval and a waiver for informed consent requirement was obtained for this study (MERC UMC Utrecht ID041, approval number 13-061/C).

Preoperative data

Baseline characteristics included sex, age, BMI, medical history and clinical tumor type. cTNM (16) staging was based on the above mentioned staging modalities and was agreed on during the multidisciplinary tumor board meetings. Neoadjuvant treatment was allocated to patients according to the Dutch oncological guidelines [online at https://www.oncoline.nl/oesofaguscarcinoom (in Dutch)]. Before 2012, patients with adenocarcinoma were treated with peri-operative triplet systemic treatment (epirubicin, cisplatin and infused 5-fluorouracil) (17). Patients with squamous cell cancer were treated with the CROSS schedule (carboplatin and paclitaxel weekly with 41.4 Gy radiation dose) and this was also administered to patients with adenocarcinoma after May 2012 (18).

Surgical procedure

All patients were operated by thoracolaparoscopic RAMIE (da Vinci robotic system Intuitive Surgical Inc., Sunnyvale, California, USA) with two field lymphadenectomies. The surgical procedure was described in detail previously (12,13). For the thoracic approach, the patient was positioned in the left lateral decubitus position, slightly tilted towards prone position. Mediastinal lymphadenectomy was standardized and included the bilateral paratracheal (station 2), tracheobronchial (station 4), aorto-pulmonary window (station 5), carinal (station 7), periesophageal (station 8) and pulmonary ligament (station 9) lymph nodes. The abdominal phase was performed by conventional laparoscopy and standard lymphadenectomy included stations 9 (celiac trunk), 8a (anterior of the hepatic artery) and 11p (proximal splenic artery) (5). The gastric conduit was performed with a stapler device, brought up to the neck and an end-to-side anastomosis was made with a single layer, hand-sewn running suture. Details of the surgical procedure (i.e., operation time, blood loss and intraoperative complications) were registered prospectively.

Postoperative outcome data

Postoperative tube feeding by an intraoperatively placed jejunostomy was done in case of severe or unrecovered weight loss. Patients were extubated on the day of surgery and monitored in the intensive care unit (ICU) ward the first night. Registration of the postoperative outcomes and complications was done prospectively at a weekly consensus meeting with the attending surgeons, physician assistants and researchers. At this meeting, complication severity was agreed upon using the Modified Clavien Dindo Classification (19). Pneumonia was scored using the Unified Pneumonia Score (Table 1) (20,21). Mortality was registered as in-hospital, 30- and 90-day. Follow-up was standardized according to the Dutch guidelines up to 5 years postoperatively.

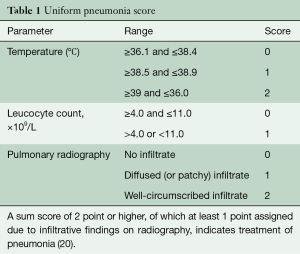

Table 1 Uniform pneumonia score
Full table

Statistical analysis

Statistical analysis was performed using SPSS version 22. Mostly descriptive data are reported in this study of the patient group and no comparative analyses between groups were performed. Distribution of nodal yield is presented in a box-plot. Survival duration was calculated as duration from the day of surgery to death or last day of follow-up. Disease-free interval was calculated from the day of surgery to the day of definitive diagnosis of recurrent disease.

Results

From May 2007 to August 2018, 604 patients underwent elective esophagectomy for esophageal cancer in our hospital. A total of 40 consecutive patients were identified with lymph node metastases in the superior mediastinum. Baseline characteristics are given in Tables 2,3. The majority of patients were male and most patients had cT3N1-2 tumors that were localized in the middle third of the esophagus. Neoadjuvant therapy was given in 90% of the patients and consisted of chemoradiotherapy in 83% of the patients and chemotherapy in all others. In 4 patients, no neo-adjuvant treatment was administered due to renal insufficiency, cardiac disease, patient refusal and in one patient, the reason was unknown. Patients receiving chemoradiotherapy were mostly treated according to the CROSS schedule (29 patients), but extended chemoradiotherapy was administered to 4 patients (10%) for various reasons. One patient was already treated in another hospital and was initially deemed irresectable due to the proximal location of the primary tumor. After showing a good response, the patient came to our center and repeated imaging showed that a negative margin could be obtained and the patient went to surgery. Two patients were not considered eligible for surgery elsewhere because of the nodal involvement in the superior mediastinum. After completion of a long-course schedule and showing a good radiological response, they we discussed in our multidisciplinary tumor board and surgical resection was offered. The final patient underwent extended chemoradiotherapy because of radiographical signs of contact of an involved node with the membranous part of the trachea.

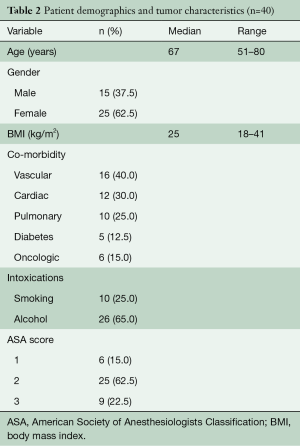

Table 2 Patient demographics and tumor characteristics (n=40)
Full table

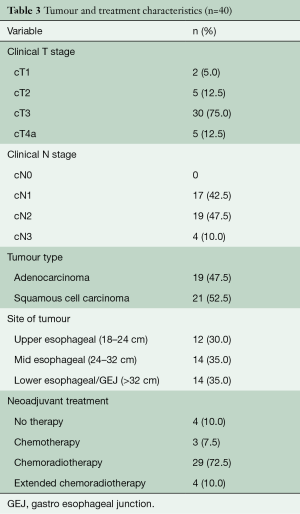

Table 3 Tumour and treatment characteristics (n=40)
Full table

Postoperative outcome data

Details of the clinical postoperative outcomes are listed in Table 4. In 10 (25%) of the patients an uncomplicated outcome was achieved. Of the remaining 30 patients, 17 (43%) had Clavien Dindo grade I or II complications. Pneumonia was encountered most frequently and occurred in 11 patients (28%). RLN palsy rates occurred in seven patients (18%) and this recovered without intervention (Grade 1) in five patients. Anastomotic leakage occurred in seven patients. All were surgically drained. In total, three patients died in the hospital postoperatively. One patient developed acute respiratory distress syndrome in combination with anastomotic leakage which resulted into an extensive period in the ICU for respiratory support. After prolonged weaning he was transferred to the ward and in the waiting period for admittance to a rehabilitation clinic, he developed acute respiratory failure. Due to treatment restrictions, he was not readmitted to the ICU and died. A second patient with COPD GOLD III also developed ARDS without signs of anastomotic leakage. Extracorporeal membrane oxygenation (ECMO) was started, however, the patient died because of insufficient pulmonary reserves. A third patient developed severe sepsis with multi-organ failure due to leakage and abscesses of the jejunostomy. Neither of these patients received extended chemoradiotherapy before surgery.

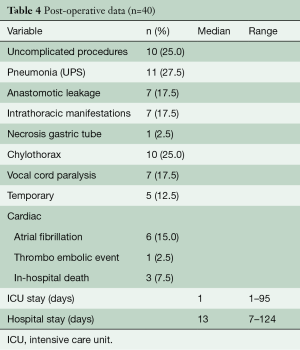

Table 4 Post-operative data (n=40)
Full table

Oncological outcomes

All but one patient (cT4a) had a radical resection (R0) and the radicality rate therefore was 98%. The patient with a R1 resection had a tumor localized from 26–36 cm and at the operation, the arcus of the azygous vein appeared to be involved (T4) and was filled with thrombus. The arcus was resected en-bloc with the tumor. The pathology report showed a tumor regression grade Mandard 4 (residual cancer outgrowing fibrosis) (22) and the positive margin was at the venous transection. The thrombus that was sent separately for pathology investigation was positive for adenocarcinoma. The number of resected nodes on average was 26 (95% CI, 23–30), see also Figure 1, Table 5. At the time of this analysis, 24 patients (60%) were deceased and 48% had recurrent disease. Median survival was 26 months at median duration of follow-up of 7 months.

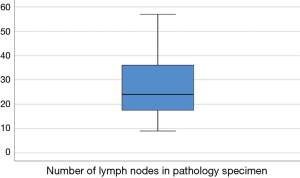

Figure 1 Boxplot of the distribution of lymph nodes retrieved from the resection specimen.

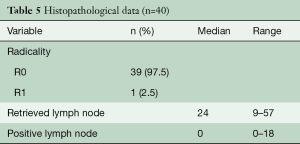

Table 5 Histopathological data (n=40)
Full table

Discussion

This study describes consecutive series of a specific group of esophageal cancer patients with clinical metastasis (cN+) to the superior mediastinal nodes. Results showed that RAMIE with nodal dissection in the superior mediastinum had excellent lymph node yields and R0 rate, with significant but acceptable complication rates. The in-hospital mortality was increased compared to mortality rates reported in the ROBOT trial (4%) (15). Two patients who died developed ARDS, which in one case was accompanied by anastomotic leakage. In the literature, ARDS after esophagectomy is reported in 13% of the cases and is associated with increased mortality (20%) (23,24). Preoperative respiratory conditions, such as COPD GOLD III (as in one of the deceased patients in our series), as well as intraoperative factors (i.e., administered oxygen percentage, use of vasopressors) are associated with the occurrence of ARDS (23,24). As a preventive measurement, we administer methylprednisolone prior to the start of the thoracic phase of the operations in all patients (1 mg/kg body weight)—as is suggested by many groups (25-27). Whether this specific group of patients with radiotherapy of the superior mediastinum is prone to develop ARDS is unclear. One patient died because of complications of the jejunostomy and this cannot be directly related to the more complex thoracic mediastinal surgery. In a systematic review focusing on esophageal cancer surgery, minor jejunostomy related complications are seen frequently (13–38%) however mortality is rare (0.0–0.5%) (28).

It is important to mention that our center is a tertiary referral center for complex cases, as is illustrated by the patients who are included in our series that underwent extended chemo-radiotherapy. Involvement of high mediastinal nodes is often used as an argument to refrain from surgical resection in the referring hospital. The results of this study show that a curative, minimal invasive treatment is feasible for these patients by performing RAMIE.

An important endpoint for this study’s analysis was recurrent nerve palsy rate as this is a complication that is specifically associated with paratracheal nodal dissection in the superior mediastinum. A previous study on 40 patients show palsy rates in 20% of patients, however, they describe skeletonization of the RLN in a subgroup and this increased palsy rates to 32% compared to 6% in the group where only tissue dorsal of the RLN was taken (6). A subsequent study describes a significant learning curve effect for RLN palsy rates and the analyses of the study showed that rates drop from 55% to 0% after performing 20 cases (7). In the current study the RLN palsy rate was 18% and most cases were temporary and required conservative management only (Grade 1) (29). The rate of injuries in patients with cN+ disease in the superior mediastinum was markedly increased compared to the palsy rate in patients that were included in the ROBOT trial which was 9% (15). In this trial, the primary tumor was located at the distal third of the esophagus or GE junction in 89% of patients and patients with high positive nodes were excluded. The doubled RLN palsy rate in the current patient series can be explained by the complexity of the cases and the challenging and more extensive dissection in the superior mediastinum. The effect of the chemoradiotherapy on the tissues surrounding the positive nodes often results in a fibrotic reaction which compromises the natural planes and impedes separation of the nodes from vital structures.

The importance of extensive nodal dissection in esophageal cancer surgery is supported by comprehensive evidence in the literature. A population-based Cohort Study in the Netherlands including 2,698 patients showed that a higher lymph node yield was significantly associated with improved overall survival, indicating the therapeutic value of extended lymphadenectomy during esophagectomy (4). Furthermore, a high lymph node yield was associated with favorable hazard ratios across all subgroups, including both squamous cell carcinoma and adenocarcinoma patients, cN0 and cN+ patients, transthoracic and trans-hiatal approaches, and both ypN0 and ypN+ patients. In this study the overall average nodal yield was 16 for all groups and 19 for patients operated by a transthoracic approach (4). The average number of nodes dissected in our study was therefore markedly higher compared to the data collected by the Netherlands national Cancer Registry.

The occurrence of superior mediastinal lymph nodes metastases ranges from 4–28% in mixed patient cohorts containing adeno—as well as squamous cell carcinoma in Western world study populations (13,30,31). For patients with mid-thoracic squamous cell carcinomas in Asia, the lymph node metastasis rates of the thoracic left para-RLN (1, 2, and 4 L zones) and right para-RLN (1R zone) were 30% and 28% in 128 cases, respectively. The metastasis rates of the 2R, 4R, and 5 zones were 5%, 4%, and 5%, respectively (9). These results show that in squamous cell cancers an upper mediastinal lymph node dissection including the thoracic left para-RLN, the right para-RLN and paratracheal lymph nodes is pivotal to obtain a radical resection and reach favorable overall survival. A study that specifically looked into the most prevalent tumor type in the Western world, namely adenocarcinoma of the distal third of the esophagus or the GE junction demonstrated that about 10% of the patients have positive nodes in the proximal chest (including the carinal and hilar stations 7 and 10) (32). Therefore, we advise standard lymphadenectomy of the superior mediastinum be performed in all cases.

This is a relatively small case series from our center, which has extensive experience in performing RAMIE with complete 2-field lymph node dissection. In the Western population however, no larger series exist for this specific patient group to our knowledge, and therefore we think the results are of interest for clinicians considering a robotic approach for esophagectomy. Adopting RAMIE requires step-wise training and learning curve effects must be taken into account (33). Therefore we advise a carefully designed proctoring program and to start with regular cases without proximal cN+ nodes Mediastinal nodal dissection can also be performed with conventional video-assisted thoracoscopic surgery (VATS) and reported results show favorable oncological and clinical outcomes (9,34,35). Our center does not have experience with VATS lymphadenectomy in the superior mediastinum as early-on we adopted robotics during the switch to minimal invasive procedures. In general VATS lymphadenectomy in the thoracic aperture is considered technically challenging where the robot provides a stable, enlarged three-dimensional view and the articulating instruments with tremor filter, facilitating meticulous dissection (36). Therefore RAMIE is of added value for complex cases such as patients with nodal disease in the superior mediastinum. The results of this study support this.

Acknowledgements

None.

Footnote

Conflicts of Interest: JP Ruurda and R van Hillegersberg are proctors for Intuitive Surgical Inc.

Ethical Statement: Institutional review board approval and a waiver for informed consent requirement was obtained for this study (MERC UMC Utrecht ID041, approval number 13-061/C).
